Fixed Gas Detection Solution
Professional-grade industrial gas detection for laboratories, oil & gas facilities, and hazardous environments. Reliable multi-gas monitoring with precision you can trust.
Product Overview
Built for continuous gas monitoring, the system detects flammable, toxic, and asphyxiant gases with flexible sampling options and seamless system integration. Features a real-time LCD display and a rugged IP66, explosion-proof design for harsh environments.
Key Features
Advanced capabilities for comprehensive gas detection.
Multi-Gas Detection
Detect combustible, toxic, oxygen, CO₂, methane, and VOC gases based on configuration.
Advanced Sensor Technology
Supports electrochemical, catalytic, PID, infrared, and thermal conductivity sensors.
Real-Time LCD Display
Clear display showing gas concentration, type, and system status.
Flexible System Integration
Supports 4–20 mA, RS485 (Modbus), relay outputs, and optional frequency output.
Smart Alarm & Control Logic
Configurable alarm thresholds with relay control for fans, valves, and external devices.
Industrial-Grade Protection
Convenient wireless configuration and maintenance capabilities
Triple Alarm Indication System
Normal
System operating normally
Device Fault
Maintenance required
Gas Alarm
Gas detected above threshold
Gases Detected by ES10B
Combustible Gases
Methane, propane, butane, hydrogen, and more
Toxic Gases
CO, H₂S, NH₃, Cl₂, NO₂,SO₂, and others
Oxygen & CO₂
Monitor oxygen levels and carbon dioxide for safety
VOC Detection
Detect volatile organic compounds like benzene, toluene, and xylene
Technical Gas Detection Capabilities
Explosive limit ranges for common combustible gases
| Gas Name | Chemical Formula | Lower Explosion Limit | Upper Explosion Limit |
|---|---|---|---|
| Methane | CH4 | 5.0% | 15.0% |
| Propane | C3H8 | 2.1% | 9.5% |
| Butane | C4H10 | 1.8% | 8.4% |
| Hydrogen | H2 | 4.0% | 75.0% |
| Benzene | C6H6 | 1.2% | 7.8% |
| Toluene | C7H8 | 1.1% | 7.1% |
| Acetone | (CH3)2CO | 2.5% | 12.8% |
| Hexane | C6H14 | 1.1% | 7.5% |
| Pentane | C5H12 | 1.4% | 7.8% |

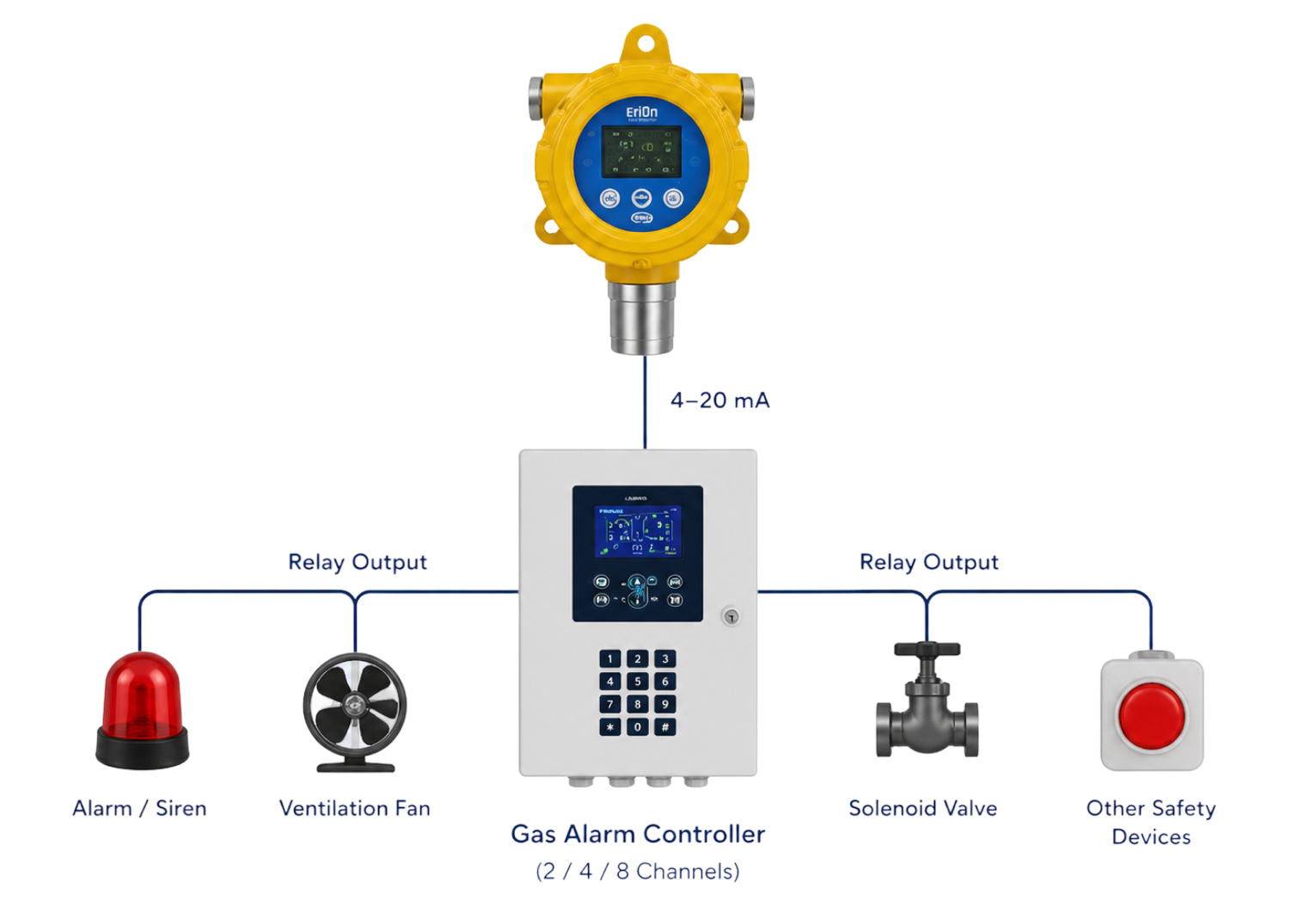

Integrated Alarm & Controller Compatibility
The solution can operate as a standalone detector or as part of a centralized gas monitoring architecture. It is compatible with multi-channel gas alarm controllers that accept 4–20 mA inputs, provide channel-based alarm indication, and support relay-based control of sirens, fans, valves, and other external safety devices. Available controller configurations include 2-channel, 4-channel, and 8-channel arrangements for scalable deployment.
Technical Specifications
Accuracy
±3%F.S
Response Time
T90 ≤ 20-30 seconds
Power Supply
24V DC
Transmission Distance
Up to 2000 m
Installation
Wall-mounted or pipe installation
Protection
IP66 industrial-grade enclosure
Output Options
4-20 mA Analog
Standard analog output for gas signal transmission
RS485 Communication
Supports Modbus protocol for system integration
Dual Relay Output
Relay outputs for alarm and external device control
Frequency Output
Optional frequency signal output
Specifications may vary depending on gas type and configuration.
Industry Applications
Critical gas monitoring across diverse industrial sectors
Monitors greenhouse gas levels, storage facility atmospheres, and pesticide vapors. Detects ammonia from fertilizers and CO2 build-up in enclosed grow spaces to protect crops and workers.
